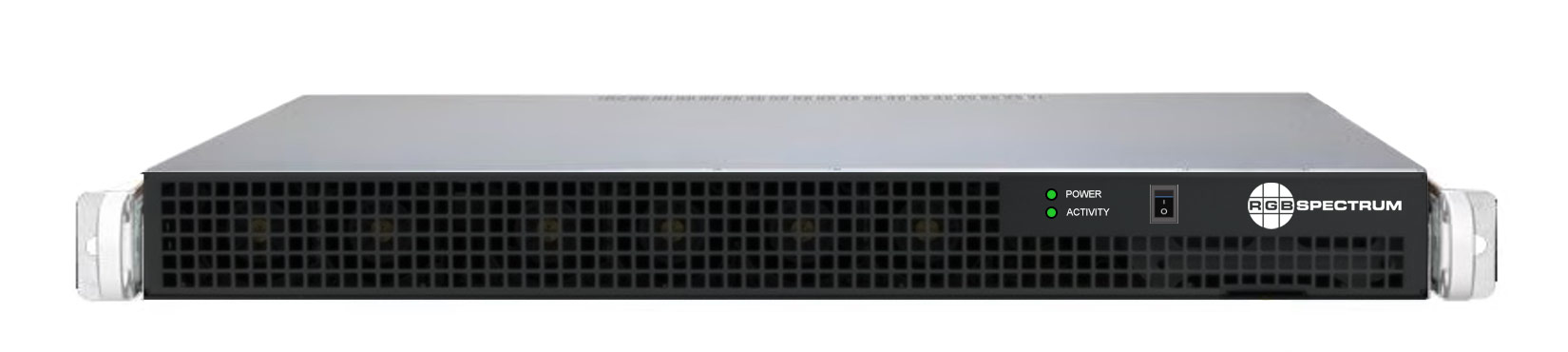

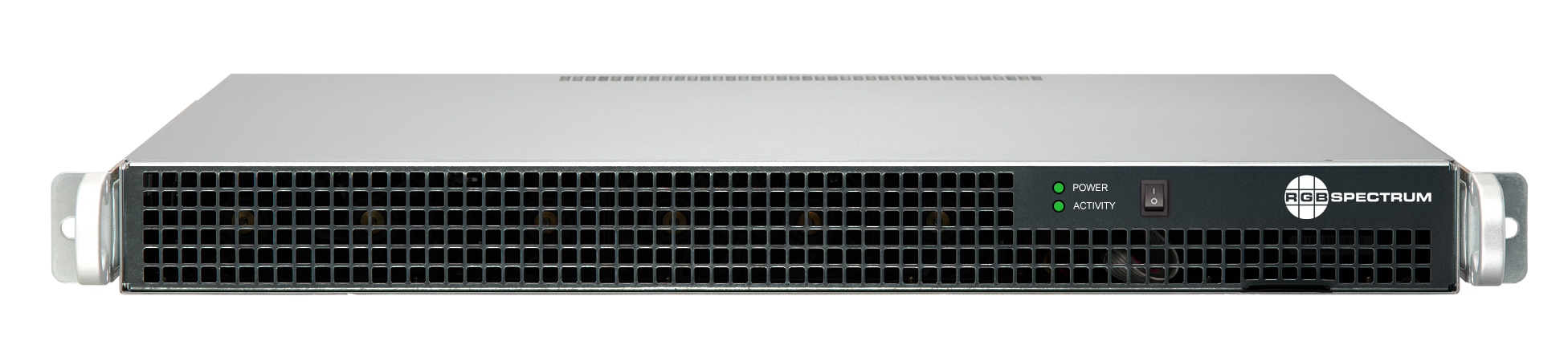

Zio W4008 Wall Processor

Advanced AV-over-IP and KVM in a Compact Chassis

The Zio W4008 series is a compact yet powerful wall processor capable of driving up to 8x 4k60 or 2x 8k60 displays. This series expands RGB Spectrum’s AV-over-IP product family with a full-function video wall processor in a more compact 1RU chassis.

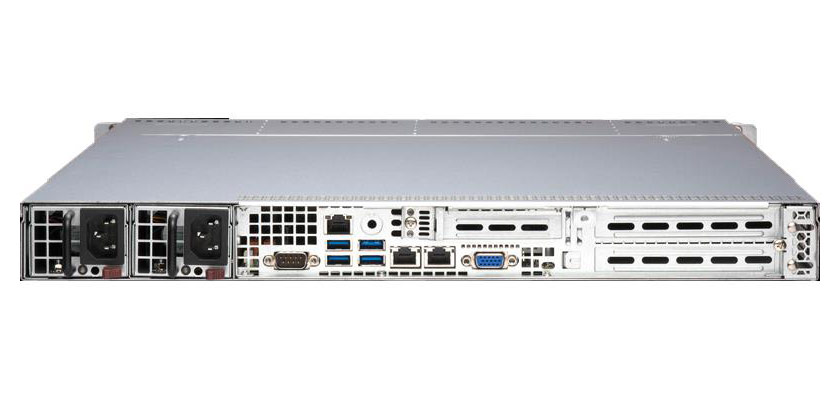

1RU chassis minimizes rack space
Supports a mix of baseband, IP video and web-based content
Inputs (baseband): Up to 4k60
Outputs: Up to 8k60
Support for XtendPoint™ streams (W4008-C)
Operates standalone or as part of an AV-over-IP system
Highly intuitive drag and drop GUI
Made in the U.S.A. and fully TAA- and BAA-compliant
Overview

The processor can be used standalone or as part of a Zio AV-over-IP system. The Zio W4008 includes all the functionality of the feature-rich Zio W4000 series, supporting a mix of local baseband, IP video (including XtendPoint sources), and web-based inputs.

The powerful drag-and-drop Zio GUI provides quick and easy configuration of the video wall, eliminating the need for advanced device programming skills. Live thumbnail previews of baseband and Zio IP sources, as well as user-defined presets for layouts and routing, are among the many easy-to-use features.

The versatile Zio W4008 is ideal for standalone or enterprise-wide applications, including security operations centers, command and control operations, and other mission-critical environments.

The Zio platform delivers reliable distribution and display of AV content across WANs and LANs using standard Gigabit Ethernet. The Zio product family includes encoders, decoders, multiviewers, wall processors, and a mobile app that supports mobile phones and tablets.

Four models are offered, each with different I/O, as detailed on the specifications page. Especially noteworthy is the integration with RGB Spectrum’s XtendPoint KVM-over-IP system (model W4008-C), which connects the video wall with a facility’s operator console.

Specifications
Model: W4008-A
Number of Inputs
0
Number of Outputs
8x mDP 2.1
Supported Streaming Content
H.264, H.265, VP9
2k30 Decode Capability
30x H.264 Streams
Max Input Timing
Up to 4k60
Max Output Timing
Up to 8k60
(two per chassis)
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Operating Humidity
8% to 90% non-condensing
Non-Operating Temp
-40 to +140 °F (-40 to +60 °C
Non-Operating Humidity
5% to 95% non-condensing
Physical
Size (H x W x D)
6.5 x 17.3 x 18.2 inches (4RU)
165 x 440 x 460 mm
Weight
27 lbs / 12 kg
Power
100-240 VAC; 50/60 Hz
690 W single
Model: W4008-B
Number of Inputs
4x HDMI® 2.1
Number of Outputs
4x mDP 2.1
Supported Streaming Content
H.264, H.265, VP9
2k30 Decode Capability
30x H.264 Streams
Max Input Timing
Up to 4k60
Max Output Timing
Up to 8k60
(one per chassis)
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Operating Humidity
8% to 90% non-condensing
Non-Operating Temp
-40 to +140 °F (-40 to +60 °C
Non-Operating Humidity
5% to 95% non-condensing
Physical
Size (H x W x D)
6.5 x 17.3 x 18.2 inches (4RU)
165 x 440 x 460 mm
Weight
27 lbs / 12 kg
Power
100-240 VAC; 50/60 Hz
690 W single
Model: W4008-C
Number of Inputs
4x mHDMI® 1.4
Number of Outputs
4x mDP 2.1
Supported Streaming Content
H.264, XtendPoint
2k30 Decode Capability
30x H.264 Streams +10k XtendPoint Streams
Max Input Timing
Up to 4k30
Max Output Timing
Up to 8k60
(one per chassis)
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Operating Humidity
8% to 90% non-condensing
Non-Operating Temp
-40 to +140 °F (-40 to +60 °C
Non-Operating Humidity
5% to 95% non-condensing
Physical
Size (H x W x D)
6.5 x 17.3 x 18.2 inches (4RU)
165 x 440 x 460 mm
Weight
27 lbs / 12 kg
Power
100-240 VAC; 50/60 Hz
690 W single
